Eigenschaften

Technische Daten

Name: mit einem Durchmesser von mehr als 50 cm3

Modell: SLW

ACSR: 70 bis 1250

Nennlast: 15 bis 120KN

Last brechen: 30-250KN

Garantie: 1 Jahr

Hervorheben:

High Tensile Steel Mesh Sock Joints

Uniform Pressure Distribution Conductor Gripping Sleeves

Temporary Dead-End Mesh Sock Joints

Grundinformation

Herkunftsort: Ningbo

Markenname: Suntech

Zertifizierung: ISO

Modellnummer: SLW

Zahlung und Versand AGB

Verpackung Informationen: Sperrholzkiste

Lieferzeit: 3-7 Tage

Zahlungsbedingungen: L/C, T/T

Versorgungsmaterial-Fähigkeit: 30000 PCs/Monat

Galerie

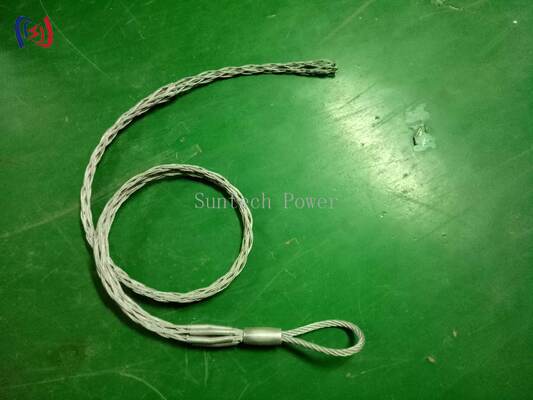

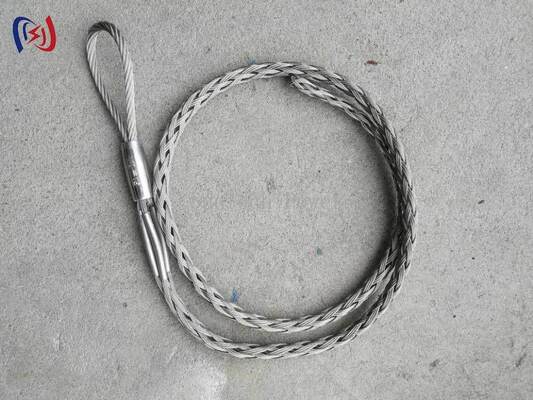

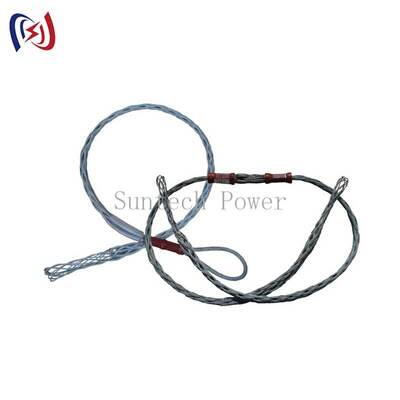

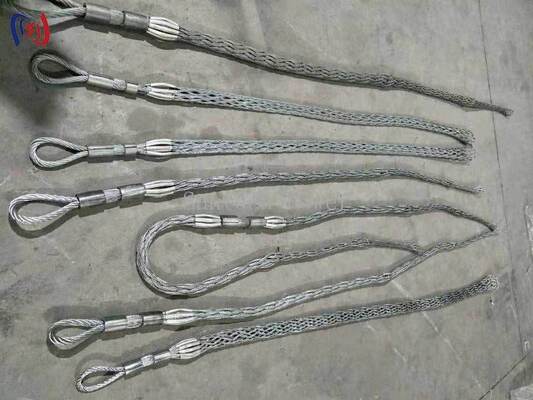

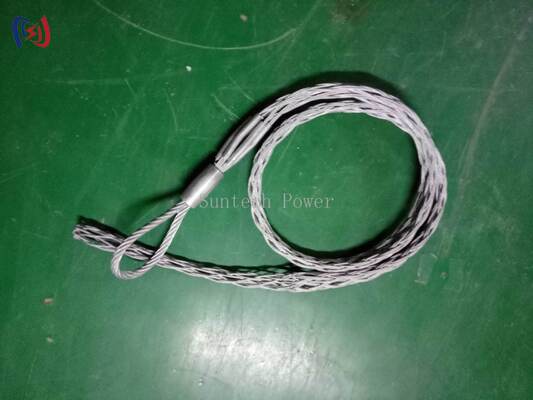

High Tensile Steel Conductor Mesh Sock Joints for Uniform Pressure Distribution and Temporary Dead-End Applications

Produkt-Beschreibung

Professional Conductor Mesh Sock Joints

Specialized temporary gripping devices for safe handling, tensioning, and pulling of bare overhead conductors including ACSR (Aluminum Conductor Steel Reinforced) and AAAC (All Aluminum Alloy Conductor).

Product Specifications

Single Head Item #	Double Head Item #	Model	Applicable Conductor (ACSR)	Rated Load (KN)
17161	17181	SLW(S)-1.5	ACSR70-95	15
17162	17182	SLW(S)-2	ACSR120-150	20
17163	17183	SLW(S)-2.5	ACSR185-240	25
17164	17184	SLW(S)-3	ACSR300-400	30
17165	17185	SLW(S)-4	ACSR500-600	40
17166	17186	SLW(S)-5	ACSR720	50
17167	17187	SLW(S)-7	ACSR900	70
17168	17188	SLW(S)-8	ACSR1000-1120	80
17169	17189	SLW(S)-12	ACSR1250	120

Key Features and Benefits

Secure High-Strength Temporary Grip: Creates reliable termination points capable of withstanding full pulling or tensioning forces without slipping.
Conductor Protection: Distributes gripping force evenly to prevent crushing, notching, and damage to conductor strands.
Pulling Eye Formation: Enables creation of secure loops and eyes for attachment to pulling lines and winch hooks.
Temporary Dead-End Function: Serves as provisional dead-end clamps during construction and repair operations.
Efficient Conductor Stringing: Smooth profile allows easy passage through stringing blocks and tensioners for continuous pulling.
Wide Conductor Compatibility: Available in various sizes to accommodate different conductor diameters from distribution to transmission voltages.
Durable and Reusable: Constructed from galvanized high-carbon or stainless steel wire for multiple uses.
Splicing and Repair Support: Simplifies complex operations by holding conductor ends in alignment under tension.
Live Line Work Compatibility: Provides secure attachment points for barehand method live line work.
Industry Standard Tool: Proven best practice for professional overhead line installation and maintenance.

Conductor Mesh Sock Joints provide a simple yet highly effective solution for applying massive force to conductors without causing damage. These tools serve as powerful, protective interfaces between conductors and installation equipment, enabling secure grips, safe pulls, and temporary terminations that contribute to the quality and longevity of electrical grid infrastructure.
