Name: High Speed Fast Powered Winch with 3-5T Tractive Force and 5-24m/Min Traction Speed for Power Line Work
Brand: Ningbo Suntech Power Machinery Tools Co.,Ltd.
SKU: JJQ-3
Price: 285,715.00 USD
Availability: InStock

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Name: Schnelle angetriebene Winde

Artikel-Nr.: 09131-09135A

Modell: JJQ-3

Rotationsrichtung: Korotation/Umkehrung

Traktive Kraft: 3-5T

Zuggeschwindigkeit: 5-24m/Min

Leistung: 4.04-6.63KW

Gewicht: 94-148 kg

Hervorheben:

High Speed Fast Powered Winch

3-5T Tractive Force Power Line Winch

5-24m/Min Traction Speed Conductor Stringing Winch

Grundinformation

Herkunftsort: Ningbo

Markenname: Suntech

Zertifizierung: ISO

Modellnummer: JJQ-3

Zahlung und Versand AGB

Verpackung Informationen: Sperrholzkiste

Lieferzeit: 3-7 Tage

Zahlungsbedingungen: L/C, T/T

Versorgungsmaterial-Fähigkeit: 3000 PCs/Monat

Galerie

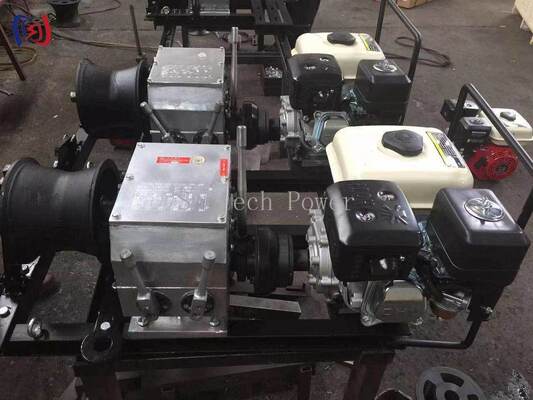

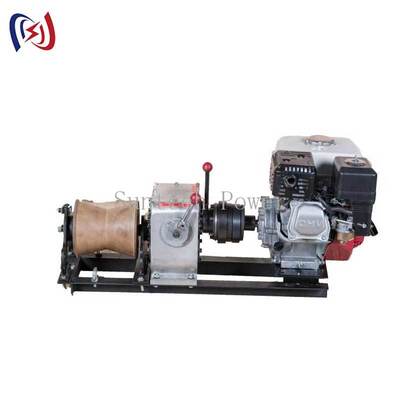

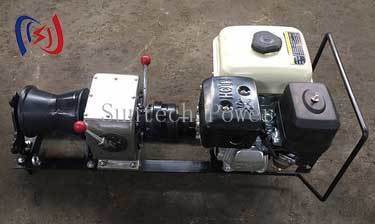

High Speed Fast Powered Winch with 3-5T Tractive Force and 5-24m/Min Traction Speed for Power Line Work

Produkt-Beschreibung

High Speed Fast Powered Winch for Rapid Cable Pulling and Conductor Stringing

The Fast Powered Winch is engineered for power industry applications where speed is as critical as strength. This specialized winch system delivers exceptionally high line speeds, dramatically accelerating tasks involving pulling, lifting, or tensioning over long distances or complex paths. While maintaining robust pulling capacities, its primary advantage lies in rapid deployment of cables, conductors, and ropes, making it indispensable for tight deadlines, large-scale installations, and emergency restoration work.

Technical Specifications

Item No.	Model	Rotation Direction	Gear	Tractive Force (T)	Traction Speed (M/MIN)	Power (KW)	Outline Size (MM)	Weight (KG)
09131	JJQ-3 6HP Gasoline Engine	Corotation	Slow I	3.0	5	4.04	900400430	94
			Slow II	2.0	7
			Fast I	0.9	16
			Fast II	0.6	24
		Reversal	Slow	No lifting	4
		Reversal	Fast		13
09135	JJQ-5B 9HP Gasoline Engine	Corotation	Fast I	0.9	24	6.61	1100525600	138
			Fast II	1.5	13
			Slow I	2.5	8
			Slow II	5.0	4

		Reversal	Slow	No lifting	4
		Reversal	Fast		18

Key Features and Benefits

Exceptionally High Line Speed for Rapid Operations: Optimized gear ratio and powerful motor combination prioritize fast retrieval and payout of cables or ropes, essential for covering long distances in conductor stringing and rapid recovery of downed lines.

Dramatically Reduced Project Completion Times: Significantly compresses work duration, lowering labor costs and minimizing crew exposure to job site hazards.

Ideal for Long Distance Pulls and Stringing: Enables rapid conductor pulling through stringing blocks, allowing crews to progress efficiently along right-of-way.

Enhanced Efficiency in Underground Cable Installation: Revolutionizes cable pulling through ducts by smoothly drawing cable at high speeds, reducing friction and crew fatigue.

Critical for Emergency Response and Storm Restoration: Allows quick recovery of broken conductors and debris removal, improving SAIDI and SAIFI reliability metrics.

Robust Construction for Demanding High Cycle Use: Heavy-duty frame, high-capacity drum, and motor cooling system ensure durability during sustained high-speed operation.

Precision Control at High Speeds: Advanced variable speed controls and responsive braking systems ensure safe, accurate operation without shock loading.

Improved Crew Utilization and Workflow: Frees up crews to focus on preparation, termination, splicing, and quality inspection, optimizing overall productivity.

Force Multiplier for Modern Utility Fleets: Expands capability to tackle larger projects and respond effectively to emergencies, enhancing operational capacity.

Investment in Operational Excellence: Strategic tool that overcomes traditional bottlenecks in power construction and maintenance, delivering superior value through faster project turnaround.

By selecting a high-performance Fast Powered Winch, you are investing in a tool that directly accelerates project timelines, enhances emergency response capabilities, and provides a tangible competitive advantage in power infrastructure development and maintenance.
